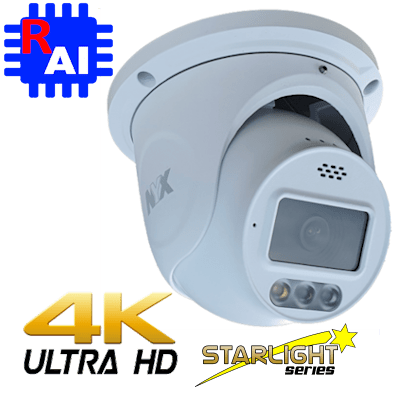

NYX D8VF ULTIMATE

8MP 4k Audible and Visual Alerts with AI People and Vehicle Detection and New Metadata Search

New Sensor Light Function, Colour at Night, Red and Blue Flashing lights.

Audible Perimeter Alert
This camera has the ability to announce
audible greetings or alerts from its internal
speaker when human presence is detected
entering a pre-determined intrusion zone.
Choose from internal messages or upload
your own wav file to the camera.

Visual Perimeter Alert

Blue and red light warning when person
or vehicle is detected.

2-Way Voice Communication

By using the smartphone app or PC software,
you can establish 2-way voice communication
from a remote location.
A simple access control / video intercom
system could be built around this camera by
using sensor input and dry contact relay output.

People & Vehicle detection mode
Get more accurate Push Notifications straightto your Smartphone when people or vehicles are detected entering your property when used with compatible NYX cameras.

Real AI Intelligence Analytics
Intelligence Analytic functions provide smarter event detection and faster searching capabilities.

Tripwire - draw a line across the scene and the camera will alert the recorder when someone has crossed it. Can be set to trigger on people or vehicles.
Region Entry/Exit - define a region in the scene and the camera will alert the recorder when something has either entered or left the zone. Can be set to trigger on people or vehicles.
Target Counting - define a region in the scene or draw a line and the camera will count objects entering or leaving the area. Can be set to trigger on people or vehicles.
Intrusion - define a region in the scene and the camera will alert the recorder when something is moving in that area. Can be set to trigger on people or vehicles.
Video Exception - be alerted when the camera is moved, tilted, out of focus or obscured.

These events are easily searchable directly via the recorder GUI, smartphone app, web browser and CMS software. This saves valuable time finding important footage.

Easy to install Plug & Play Full 5MP 25/30fps vandal dome camera now supporting the latest H.265+ video encoding, built-in microphone and local recording to SD card up to 128GB.

Features
• 4MP (2592×1520) High Definition
• Blue and red light warning (flashing alternately)

• Voice annunciation intrusion detection
• 2-way voice communication
• Sensor light function
• White light for colour at night
• People & Vehicle detection
• Internal microphone & speaker
• 2.8mm IR corrected lens - 93° angle of view
• H.265+ / H.265 / H.264+ / H.264 video encoding
• ICR auto switch, true Day/Night
• 30~50m IR night view distance
• SD Card recording up to 128GB
• 3D DNR, digital WDR
• ROI encoding
• Support IOS & Android remote monitoring
• IP67 ingress protection, full metal housing and base
• Triple Stream
• 12VDC / 48V PoE

Setting Up Light & Audio on Ultimate Camera

ColourF1 The Ultimate camera series has a F1.0 image sensor which gives colour at night in very low light situations.

(501-134)

• 8MP (3840×2160) High Definition
• Blue and red light warning (flashing alternately)

• Voice annunciation intrusion detection
• 2-way voice communication
• Sensor light function
• White light for colour at night
• People & Vehicle detection
• Internal microphone & speaker
• Motorised Auto-Focus 2.8~12mm IR Corrected Lens
• H.265+ / H.265 / H.264+ / H.264 video encoding
• ICR auto switch, true Day/Night
• 30~50m IR night view distance
• SD Card recording up to 128GB
• 3D DNR, digital WDR
• ROI encoding
• Support IOS & Android remote monitoring
• IP67 ingress protection, full metal housing and base
• Triple Stream
• 12VDC / 48V PoE

SKU	501-134
Brand	NYX
Shipping Weight	8.0000kg
Shipping Width	0.300m
Shipping Height	0.400m
Shipping Length	0.300m
Shipping Cubic	0.036000000m3
